PLACA MAE A520M-K PRO V14 AMD COLORFUL#

Medidas do produto: 5.5cm (A) x 26.0cm (L) x 27.5cm (C) Peso: 0.74Kg Itens da caixa master: 10 UnidadesAltura da caixa master: 29.0 cm (A)Largura da caixa master: 29.0 cm (L)Comprimento da caixa master: 58.5 cm (C)Peso da caixa master: 8.15Kg

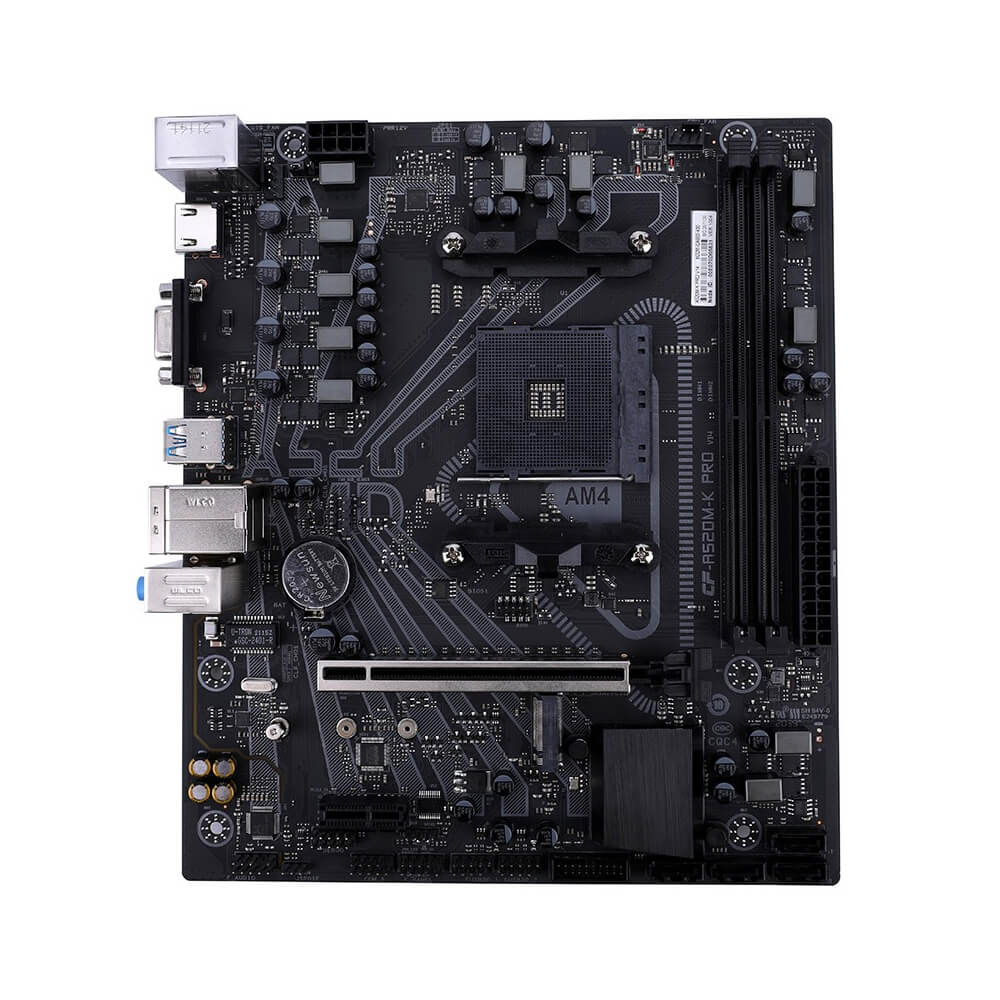

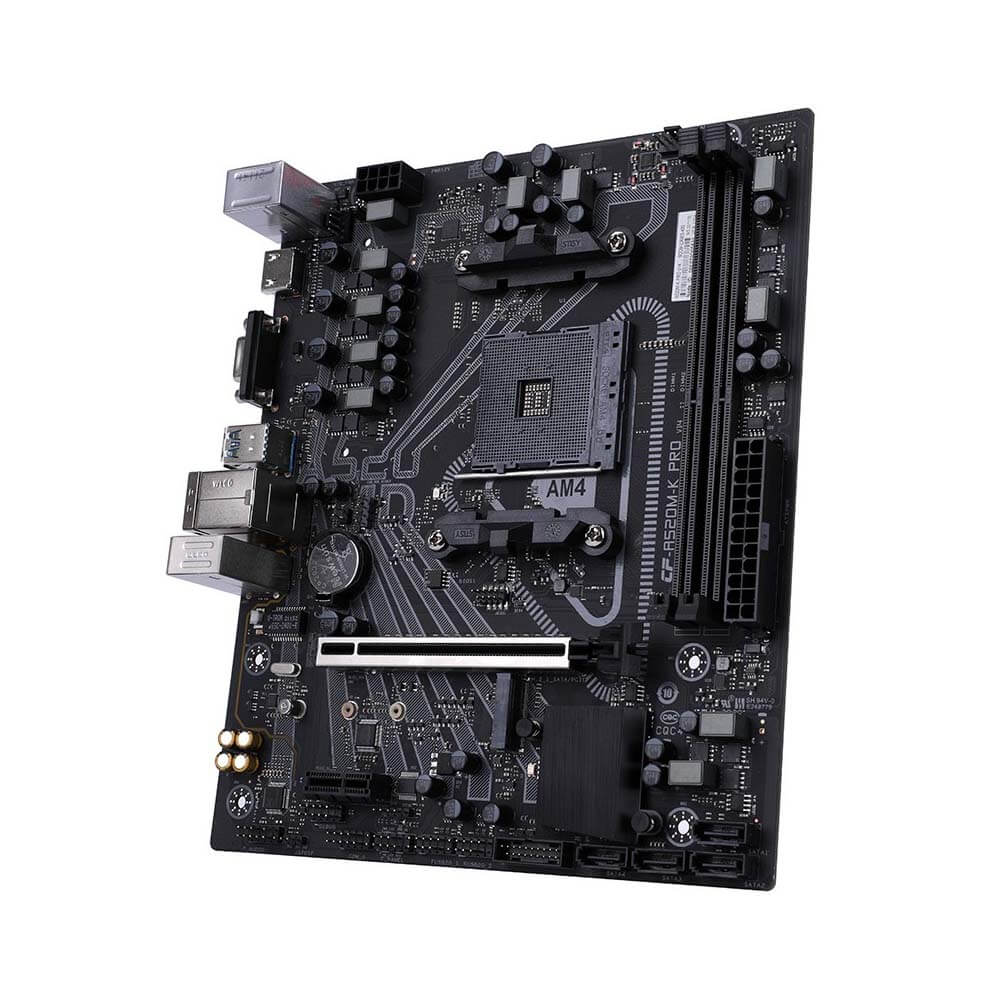

A520M-K PRO V14

Motherboard Series : AMD chipset,COLORFUL series
Chipset : AMD A520

Processor
– Supports AMD Socket AM4 and 3rd Generation AMD Ryzen processors

Memory :
– 2 DIMM slots
– Supports Dual Channel DDR4 3200(OC)/3000(OC)/2800(OC)/2666/2400/2133MHz memory

Graphics Support :
– 1*PCI Express3.0X16 slot

SATA Ports :
– 4*SATA3.0 6Gb/s ports

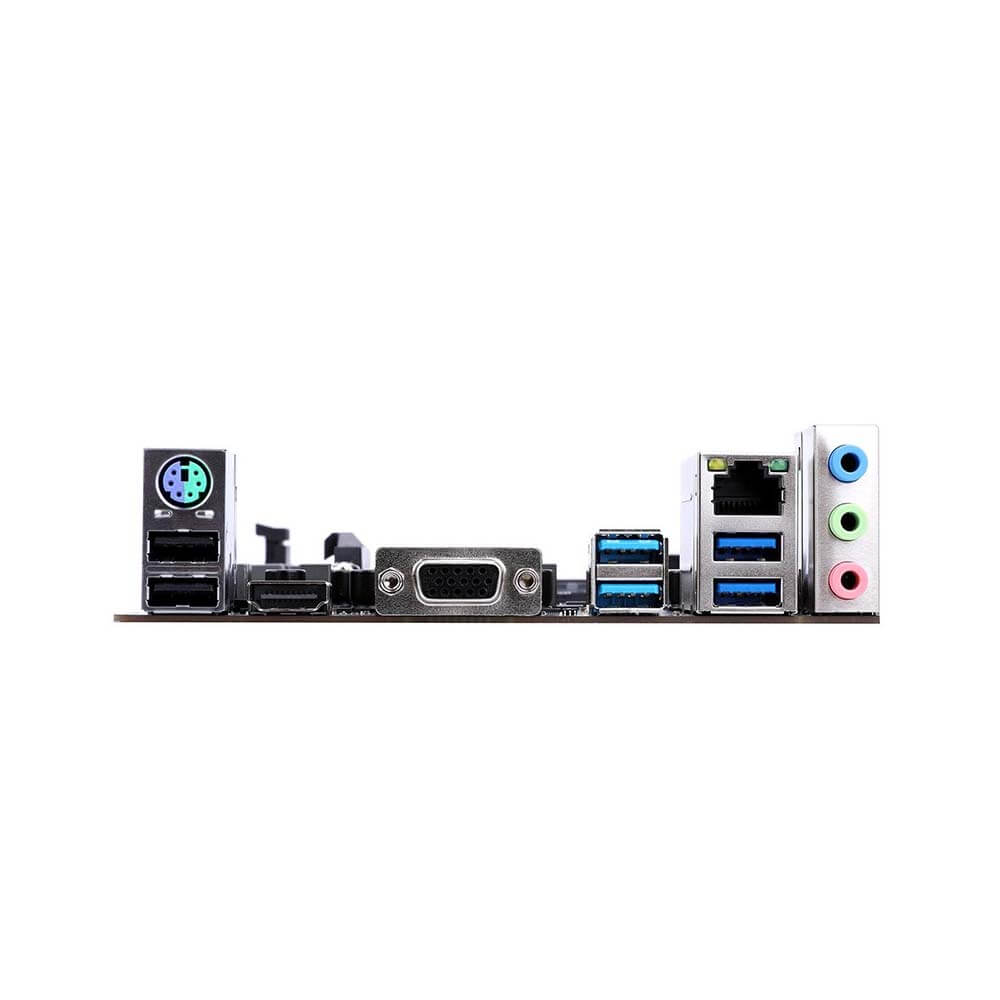

Board I/O :
– 1*PS2
– 2*USB2.0
– 1*HDMI
– 1*VGA
– 4*USB3.1 GEN1 TYPE-A ports
– 1*RJ45 1000M LAN
– 1*6audio ports
– (Onboard:2*USB2.0 and 1*USB3.1 GEN1 TYPE-A headers)

Expansion Slots :
– 1*PCI Express3.0X1 slot
– 1*M.2 slot

BIOS :
– 128M UEFI

Hardware Monitor :
– CPU Fan speed Controlled
– SYSTEM Fan speed Monitoring
– CPU Temperature Monitoring
– System Temperature Monitoring
– Voltage monitoring

LAN :
– 1000M LAN,Provides 10/100/1000Mb Ethernet

Audio :
– 6-Channel High Definition audio CODEC

Configuration :
– 192mm*225mm mATX
