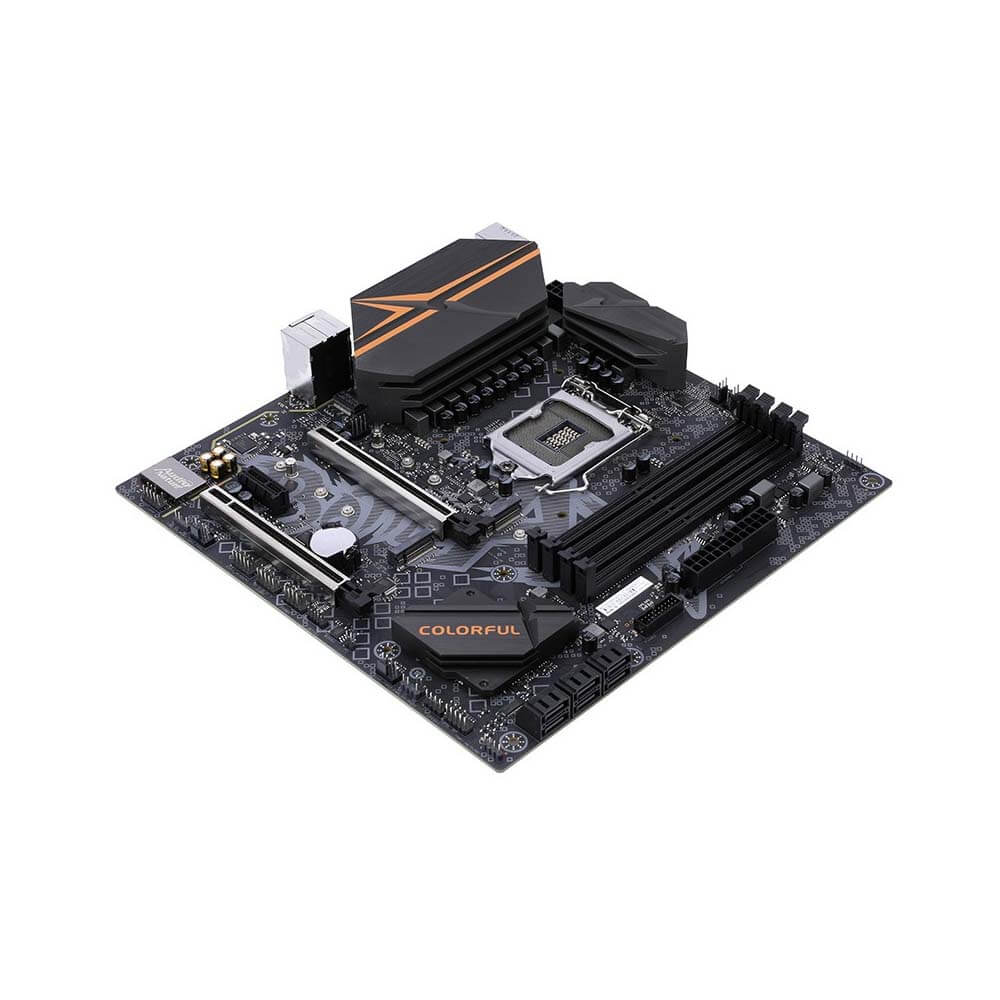

PLACA MAE B560M BATTLE-AX GAMING V20 INTEL 1200 COLORFUL#

Medidas do produto: 5.5cm (A) x 26.0cm (L) x 27.0cm (C) Peso: 1.27Kg Itens da caixa master: 10 UnidadesAltura da caixa master: 29.0 cm (A)Largura da caixa master: 29.5 cm (L)Comprimento da caixa master: 59.0 cm (C)Peso da caixa master: 13.51Kg

BATTLE-AX B560M GAMING V20

Motherboard Series : Intel chipset,CVN series
Chipset : Intel B560

Processor
– Supports 10th and 11th Generation Intel® Core Processors (Socket 1200)

Memory :
– 4*DIMMs
– supports DDR4 3200/3000/2933/2666/2400/2133MHZ memory
11th gen Intel Core i9/i7/i5 support 3200/3000/2933/2666/2400/2133 MHz
10th gen Intel Core i9/i7/Pentium,support 2933/2666/2400/2133 MHz
10th gen Intel Core i5/i3/Pentium,support 2666/2400/2133 MHz

Graphics Support :
– 1*PCI Express 4.0/3.0X16 slot

SATA Ports :
– 6*SATA3.0 6Gb/s ports

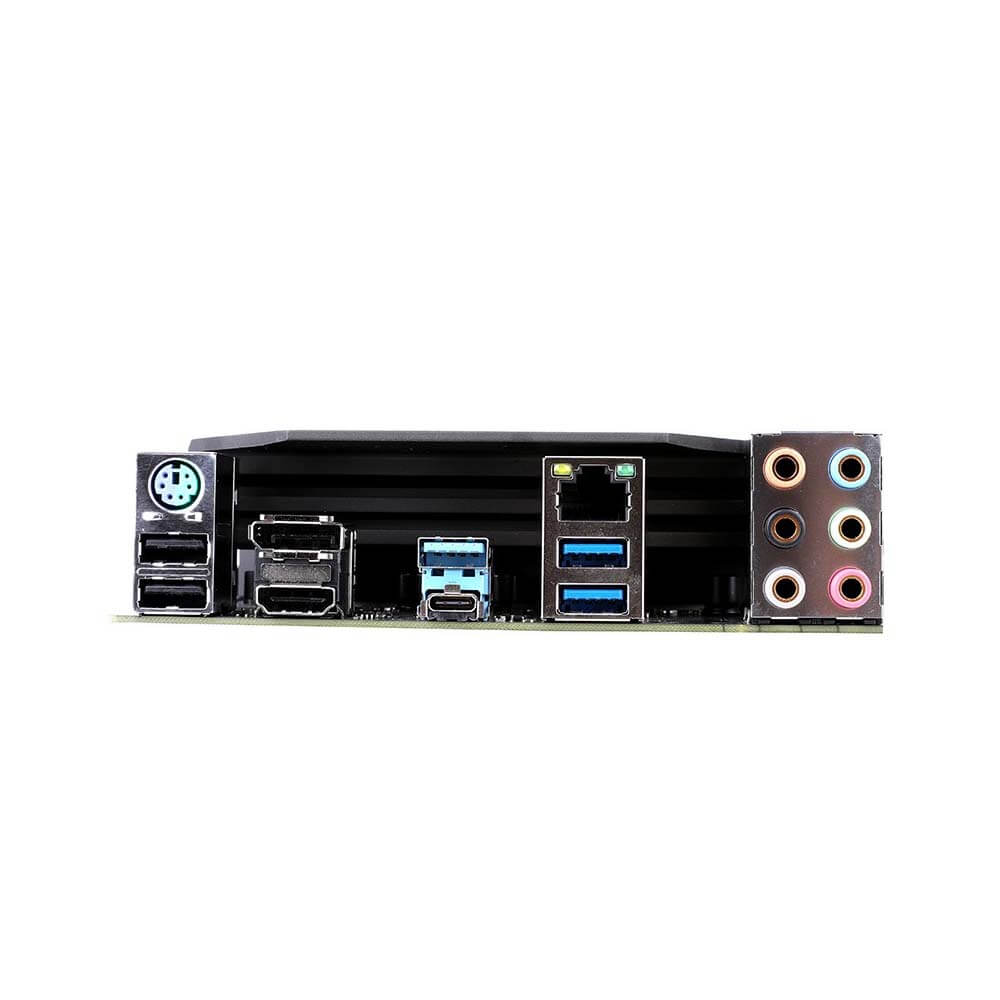

Board I/O :
– 1*PS2 port
– 1*HDMI port
– 1*DP port
– 2*USB 2.0 ports
– 2*USB 3.2 Gen1(1*Type-A+1*Type-C)ports
– 2*USB3.2 Gen1 TYPE-A
– 1*RJ45 1000M LAN
– 6*audio ports
– (onboard:1*USB2.0 headers,1*USB3.2 Gen1 TYPE-A header)
– 2*5V 3-pin RGB headers
– 2*12V 4-pin RGB headers

Expansion Slots :
– 1*PCI Express3.0X4
– 1*PCI Express3.0X1 slot.2*M.2 slot

BIOS :
– 128M UEFI

Hardware Monitor :
– CPU Fan speed Controlled
– SYSTEM Fan speed Monitoring
– CPU Temperature Monitoring
– System Temperature Monitoring
– Voltage monitoring

LAN :
– 1000M LAN,Provides 10/100/1000Mb Ethernet

Audio :
– 8-Channel High Definition audio CODEC

Configuration :
– 245 x 245 mm mATX
