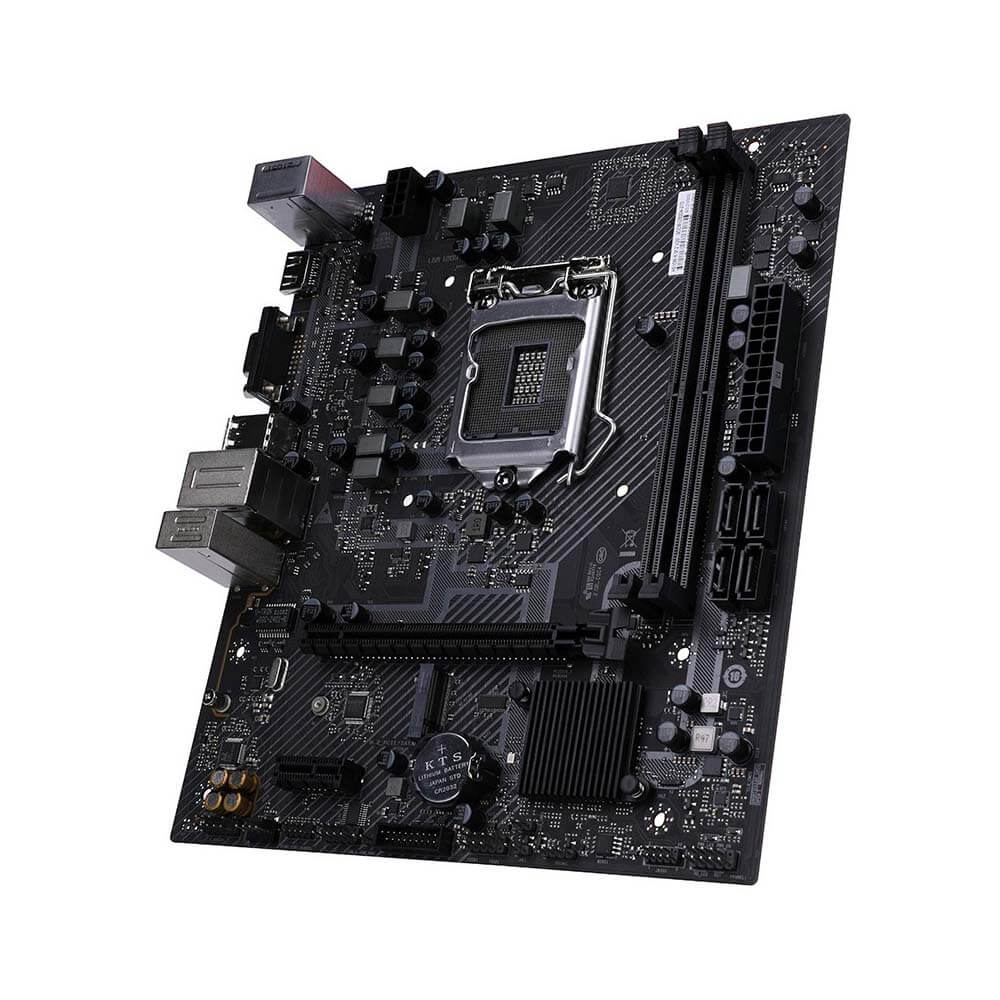

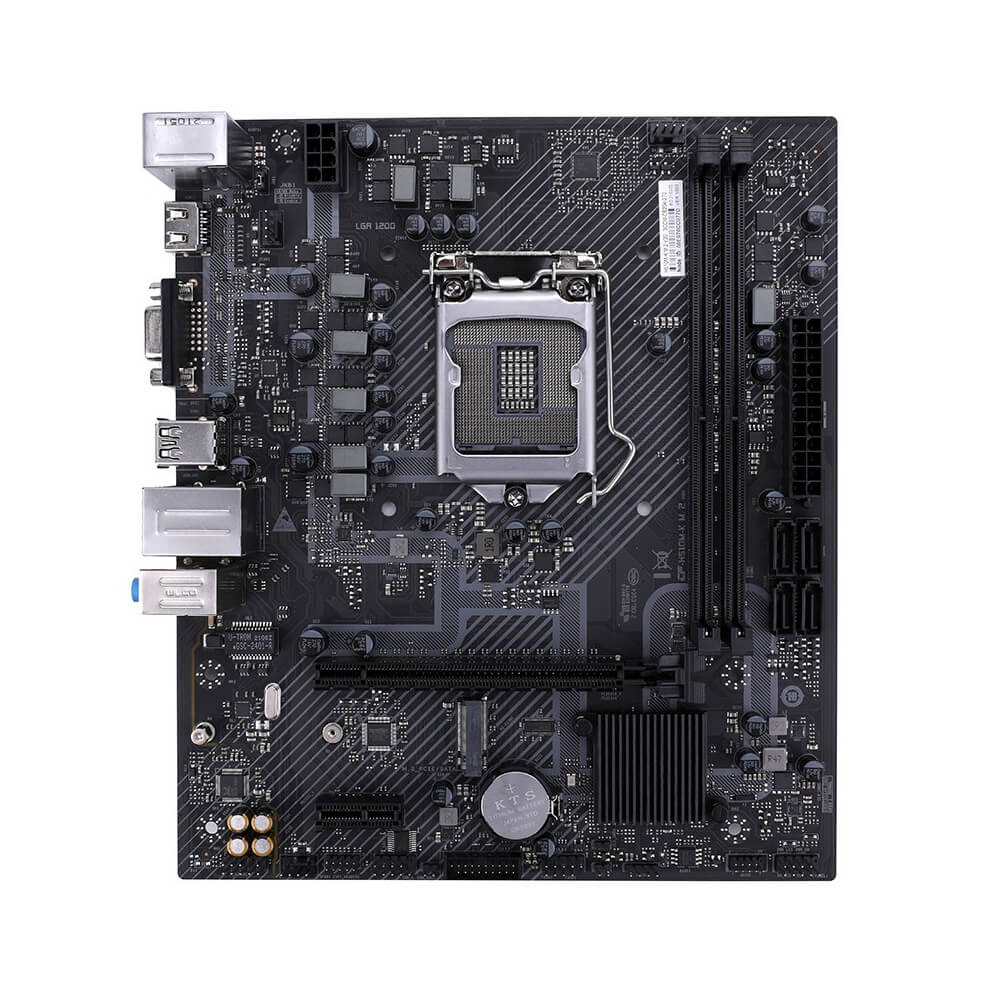

H510M-T M.2 V20

Motherboard Series : Intel chipset,COLORFUL series
Chipset : Intel H510

Processor
– Supports 10th and 11th Generation Intel® Core Processors (Socket 1200)

Memory :
– 2 DIMM slots
– support dual channel DDR4-3200/2933/2666/2400 MHz

Graphics Support :
– 1*PCI Express4.0/3.0X16 slot

SATA Ports :
– 3*SATA3.0 6Gb/s ports

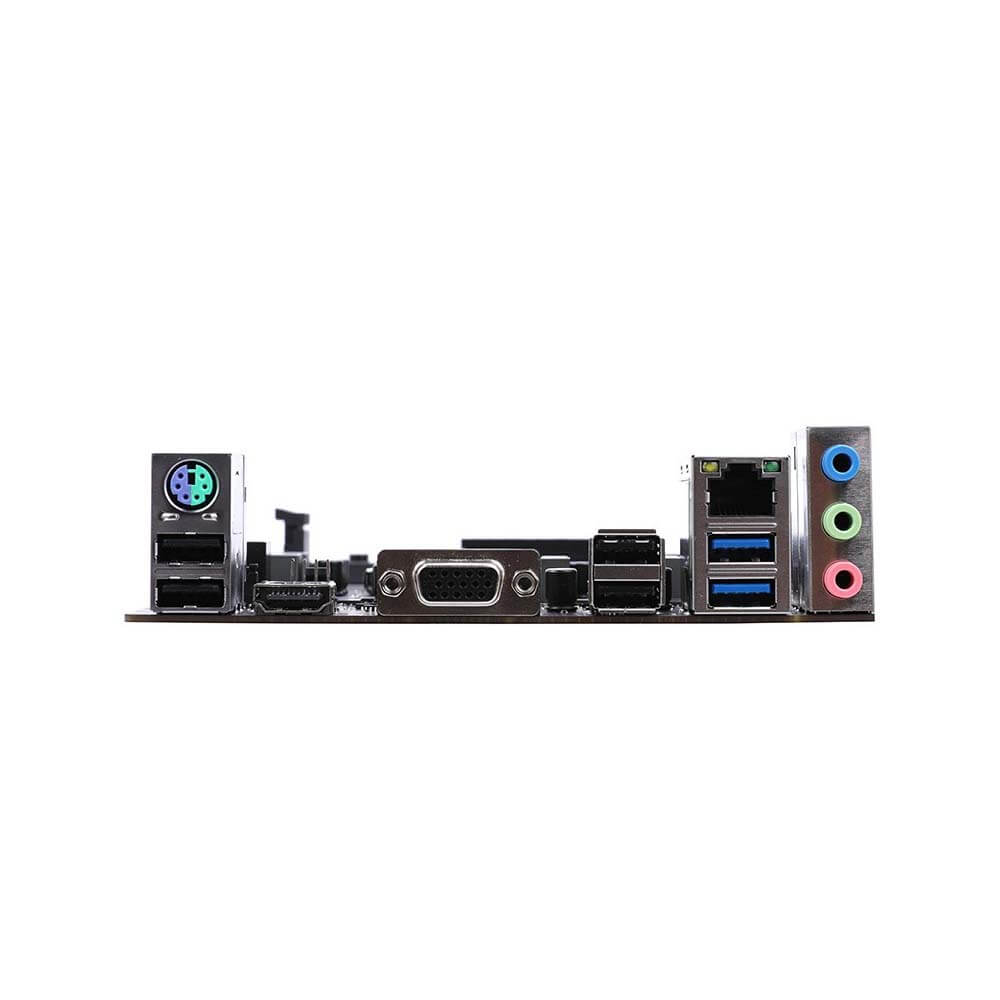

Board I/O :
– 1*PS2 port
– 1*HDMI port
– 1*VGA port
– 4*USB 2.0 ports
– 2*USB 3.2 Gen1 ports
– 1*RJ45 1000M LAN
– 3*audio ports
– onboard: 1*USB2.0 header,1*USB3.2 Gen1 header)

Expansion Slots :
– 1*PCI Express3.0X1 slot
– 1*M.2 slot(support PCIE & SATA SSD)

BIOS :
– 128M UEFI

Hardware Monitor :
– CPU Fan speed Controlled
– SYSTEM Fan speed Monitoring
– CPU Temperature Monitoring
– System Temperature Monitoring
– Voltage monitoring

LAN :
– 1000M LAN,Provides 10/100/1000Mb Ethernet

Audio :
– 6-Channel High Definition audio CODEC
