CVN Z590M GAMING PRO V20

Motherboard Series : Intel chipset,CVN series
Chipset : Intel Z590

Processor
– Supports 10th Gen and 11th Gen Intel® Core Processors (Socket 1200)

Memory :
– 4 DIMM slots support dual channel DDR4-3200/2933 MHz
(memory overclocking also depends on the matching CPU and the overclocking performance of the memory itself!)

Graphics Support :
– 1*PCI Express4.0/3.0X16 slot

SATA Ports :
– 6*SATA3.0 6Gb/s ports

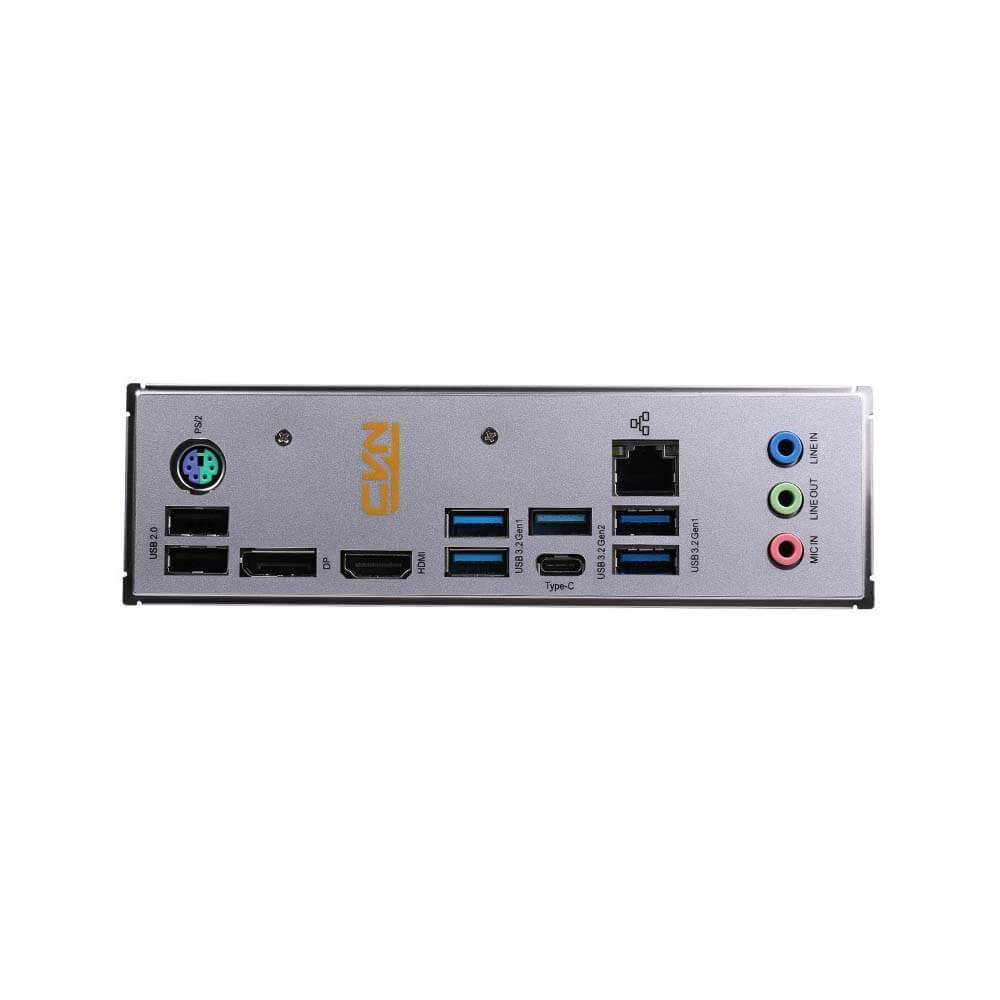

Board I/O :
– 1*PS2 port
– 1*HDMI port
– 1*DP port
– 2*USB 2.0 ports
– 2*USB 3.2 Gen2(Type-A +Type-C)
– 4*USB 3.2 Gen1 ports
– 3*audio ports
(onboard: 1*USB2.0 header,1*USB3.2 Gen1 header)

Expansion Slots :
– 1*PCI Express3.0X4 slot
– 1*PCI Express3.0X1 slot
– 2*M.2 slot

BIOS :
– 128M UEFI

Hardware Monitor :
– CPU Fan speed Controlled
– SYSTEM Fan speed Monitoring
– CPU Temperature Monitoring
– System Temperature Monitoring
– Voltage monitoring

LAN :
– Realtek RTL8111H 1000M LAn ( Provides 10/100/1000Mb Ethernet )

Audio :
– 6-Channel High Definition audio CODEC

Configuration :
– 245 x 245 mm mATX
